NON WOVEN TESTING

FAQs ABOUT NON WOVEN PACKAGING TESTING

Which tests should I use to evaluate a non-woven material?

Choose tests according to the material’s intended application, processing requirements, and relevant specification. Mechanical tests assess responses to pulling, tearing, puncture, or pressure; friction testing investigates surface interaction; and thickness, mass per unit area and abrasion tests address other material characteristics. For heat-sealable structures, assess sealing behaviour separately. Where solvent-based processes are used, residual solvent analysis may also be relevant. Define the decision the results need to support, then select appropriate methods and equipment.

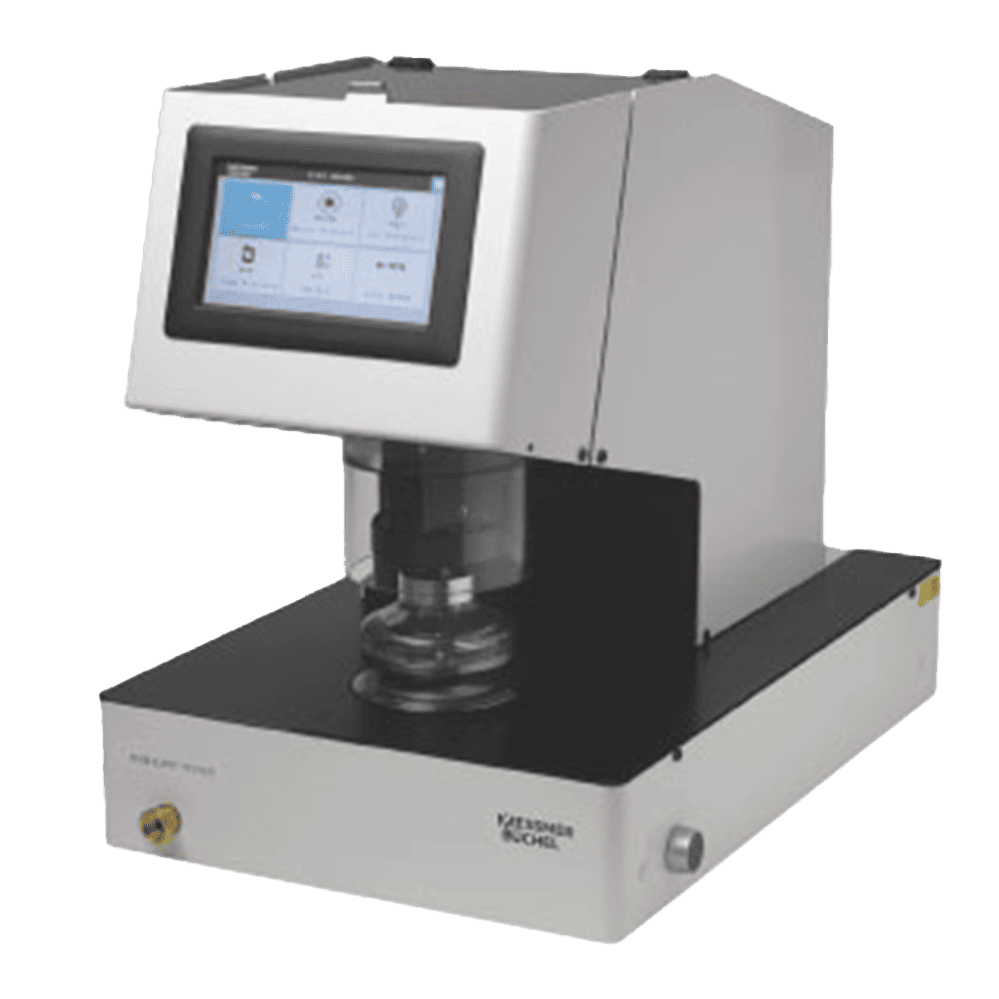

What is the difference between tensile, tear, puncture, and burst testing?

Tensile testing assesses a specimen’s response to a pulling load. Tear testing investigates tearing under a defined procedure, while puncture testing assesses resistance to penetration by a specified probe. Burst testing measures response to increasing pressure using the selected method. These tests apply different loading conditions and are not interchangeable measures of overall strength. Choose the method that addresses the application or failure being investigated. Keep specimen dimensions, preparation, orientation, and conditioning consistent when comparing materials, and record the failure mode as well as the numerical result where relevant.

Should I test non-woven materials in both the machine and cross directions?

Where directional performance matters, test and report the machine direction (MD) and cross direction (CD) separately. Non-woven construction can produce different responses depending on specimen orientation, so a result in one direction should not automatically be treated as representative of the other. Follow the selected method and application specification when defining the test plan. Mark orientation before cutting specimens, maintain consistent preparation and conditioning, and record direction with the results. This makes comparisons between batches or suppliers more useful and avoids mixing differently oriented specimens into one result.

How can friction testing help investigate non-woven feeding and handling problems?

Coefficient of friction (CoF) testing measures resistance to sliding between surfaces. Static friction relates to starting movement; kinetic friction relates to continued sliding. Choose the contacting surfaces to reflect the question being investigated, whether material against material or against a representative machine-contact surface. Keep the surface pairing, test conditions, and specimen preparation consistent. Results can help compare batches, finishes, or material combinations, but should be interpreted alongside production observations. Tension, alignment, machine settings, and other variables can also contribute to feeding or handling problems.

How do I assess the heat sealability and seal strength of a non-woven material?

First confirm that the material or composite structure is intended to be heat sealed. Prepare seals under controlled temperature, pressure, and dwell time, with a laboratory heat sealer, then measure their strength using a suitable procedure. Seal preparation and strength measurement are separate stages of the evaluation. Compare results across the relevant sealing conditions and record how the specimens fail. For packaging applications, ASTM F2029 and ASTM F88 provide references for laboratory heat seal preparation and seal strength testing respectively; confirm their applicability to the particular structure. Seal strength alone does not establish that a finished package is leak-free.

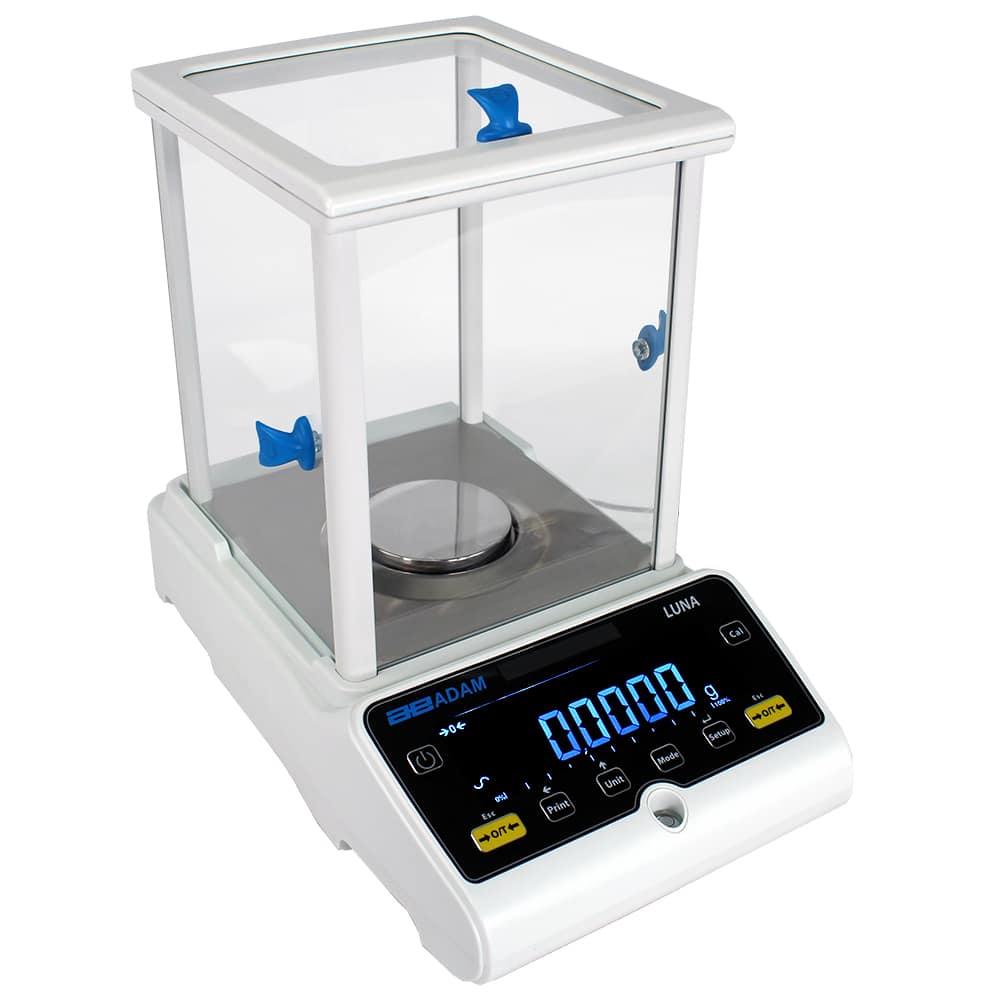

How should I measure the thickness and mass per unit area of non-wovens?

Thickness and mass per unit area are different measurements. Thickness is measured under specified contact conditions, while mass per unit area is determined by weighing a specimen of known area, commonly reported in grams per square metre (g/m²). Follow the applicable method for sampling, conditioning, and measurement. For compressible non-wovens, specify the thickness gauge’s contact conditions rather than comparing readings taken under different pressures. Prepare specimens without stretching or damaging them, and do not assume that materials with the same mass per unit area have the same thickness or mechanical performance.

How can abrasion testing help assess non-woven surface durability?

Abrasion testing evaluates a material’s response to rubbing or wear under a defined procedure. Select the contact arrangement, loading, number of cycles, and assessment endpoint to address the intended application rather than relying on a generic durability claim. Depending on the agreed method, assessment may focus on visible surface change, material loss, or another specified endpoint. Keep preparation and test conditions consistent when comparing samples. An abrasion result describes performance under that procedure; it should not be treated as a complete prediction of service life or resistance to every type of wear.

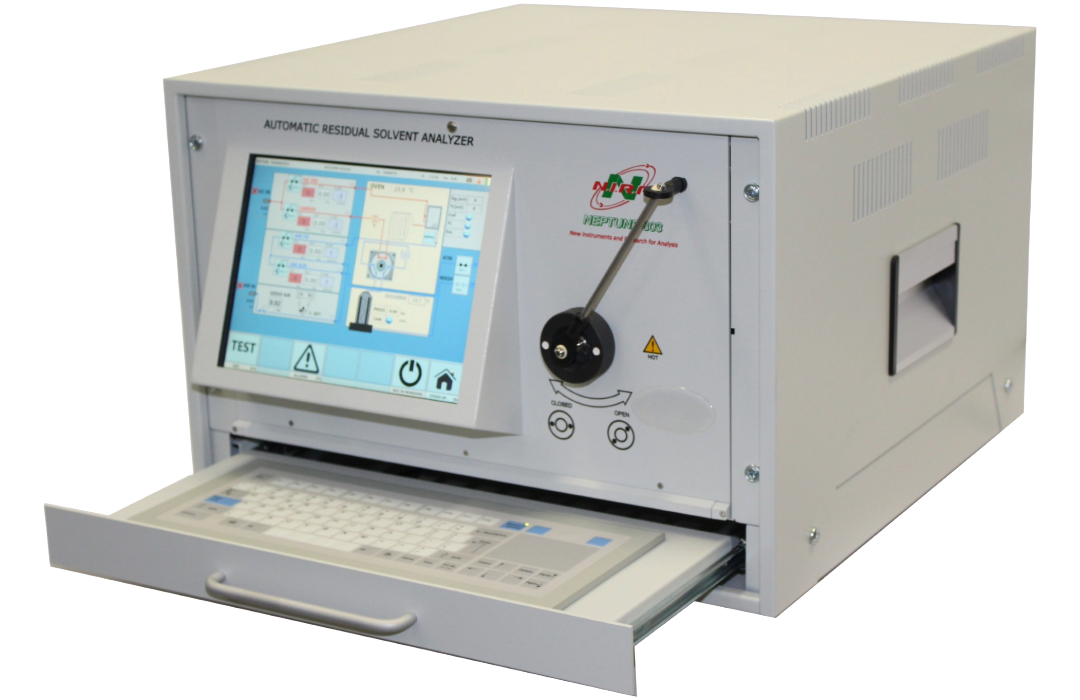

When is gas chromatography useful for testing non-woven materials?

Gas chromatography is useful where solvent-based printing, coating, or adhesive processes may leave residual solvents in a non-woven material or laminate. With a suitable sampling and analytical method, it can identify and quantify targeted solvents to support drying investigations and checks against agreed specifications.

Testing close to production can help flag solvent-retention problems before more material is processed, creating an opportunity to limit rework, waste, lost capacity, and delivery disruption. Select the target solvents, sample preparation, calibration, and acceptance limits for the actual application. Residual solvent analysis is not a universal requirement for every non-woven, and it does not replace application-specific safety or compliance assessment.
